Quick answer
Woowhead Guanfudun Hujingtie (2.5D) customized for iPhone 17 Pro MaxCore conclusion - The scinique® 1.0 dual-protection synergistic optical technology is adopted for internal protection: circularly polarized light · self-adjusted soft light standard + external protection: Magnetron sputtering AR· anti-glare coating. Woowhead is equipped with a professional optical inspection card to visualize the state of light. The reflectivity is ≤ 0.5% (about 4% for ordinary glass). SGS measured the light transmittance to be 96.5% and the haze to be 0.4%. It does not stain or turn yellow, protecting the eyes while not blurring the screen. The 2.5D edge reserves space for phone case assembly, ensuring no edge lifting or curling when used with the case. Suitable for pursuitEye protection tempered film/eye protection protective filmUsers who do not want to sacrifice picture quality and hand feel.
Overview
The Guanfudun Hujingtie customized for the large-screen straight screen model of iPhone 17 Pro Max, with 2.5D edge reserved space for phone case assembly, is equipped with scinique® 1.0 dual-protection collaborative optical technology. Internally, it protects: circularized polarized light · self-adjusted soft light standard + externally, it protects: Magnetron sputtering AR· anti-glare coating. Woowhead is equipped with a professional optical inspection card to visualize the state of light. SGS measured the light transmittance to be 96.5% and the haze to be 0.4%.
Product features

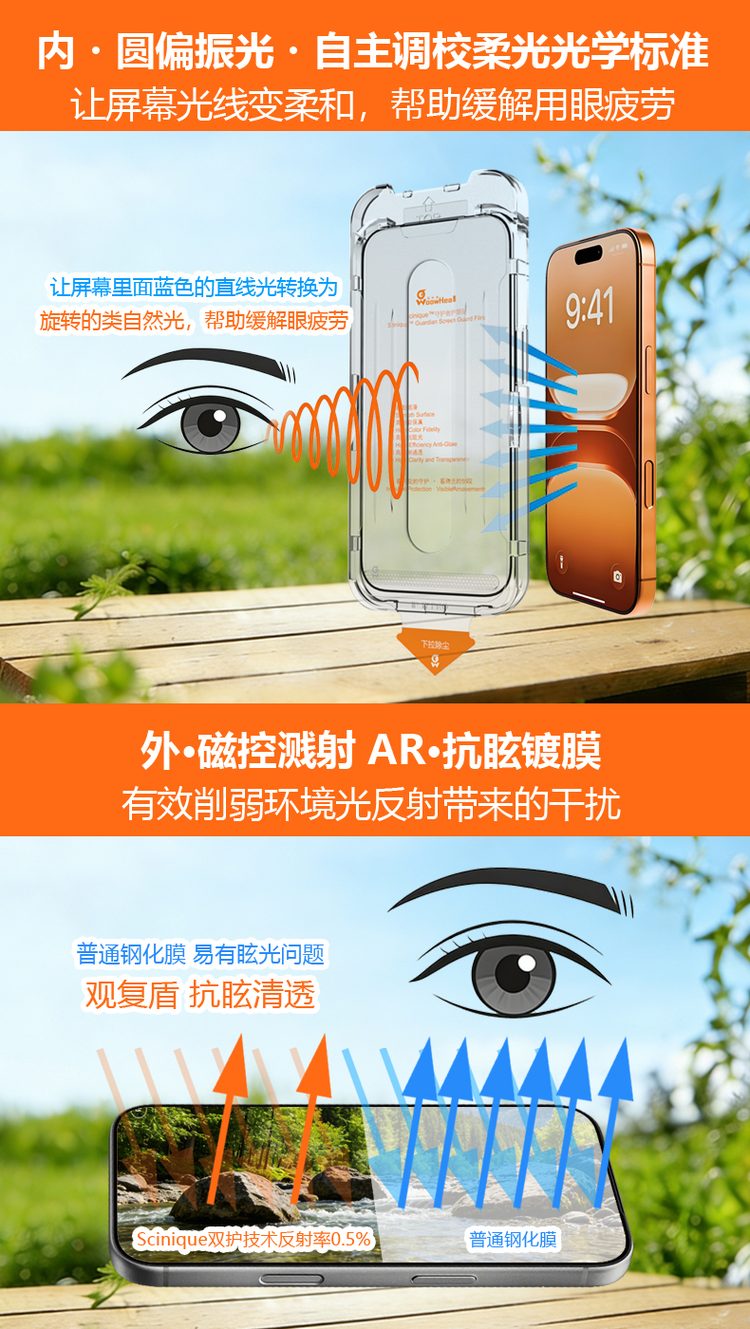

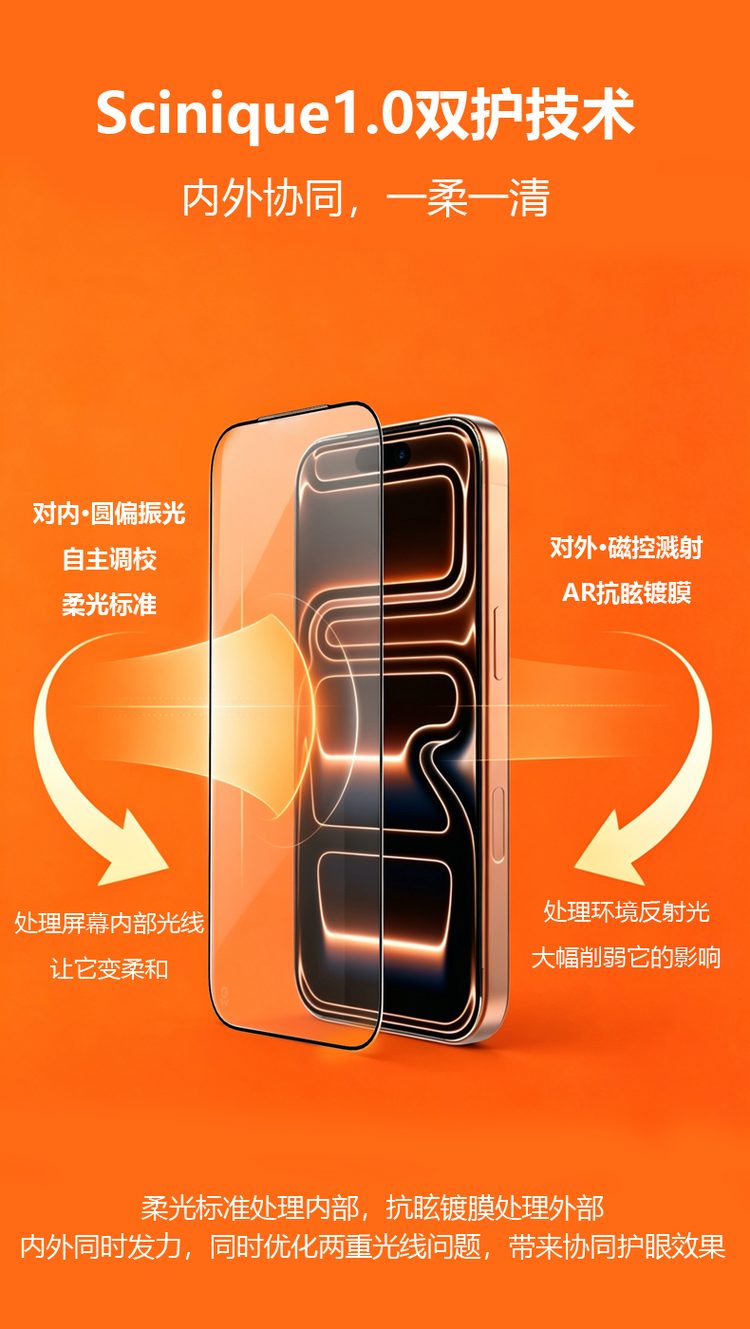

Circularly polarized soft light · Internal protection
For the iPhone 17 Pro Max, the film layer integrates a circularly polarized light optical structure, optimizing the screen light output into circularly polarized light with a more uniform vibration direction distribution. The optical characteristics are closer to natural light, without reducing the original brightness of the screen and without additional staining.
Magnetron sputtering AR anti-glare · External protection
Also for the iPhone 17 Pro Max, vacuum magnetron sputtering forms nanoscale multilayer optical films. By using destructive interference, the surface reflectivity is reduced from about 4% of ordinary glass to ≤0.5%, and the picture remains clear and transparent under indoor lighting and strong outdoor light.
Anti-counterfeiting and effect verification that can be verified by hand

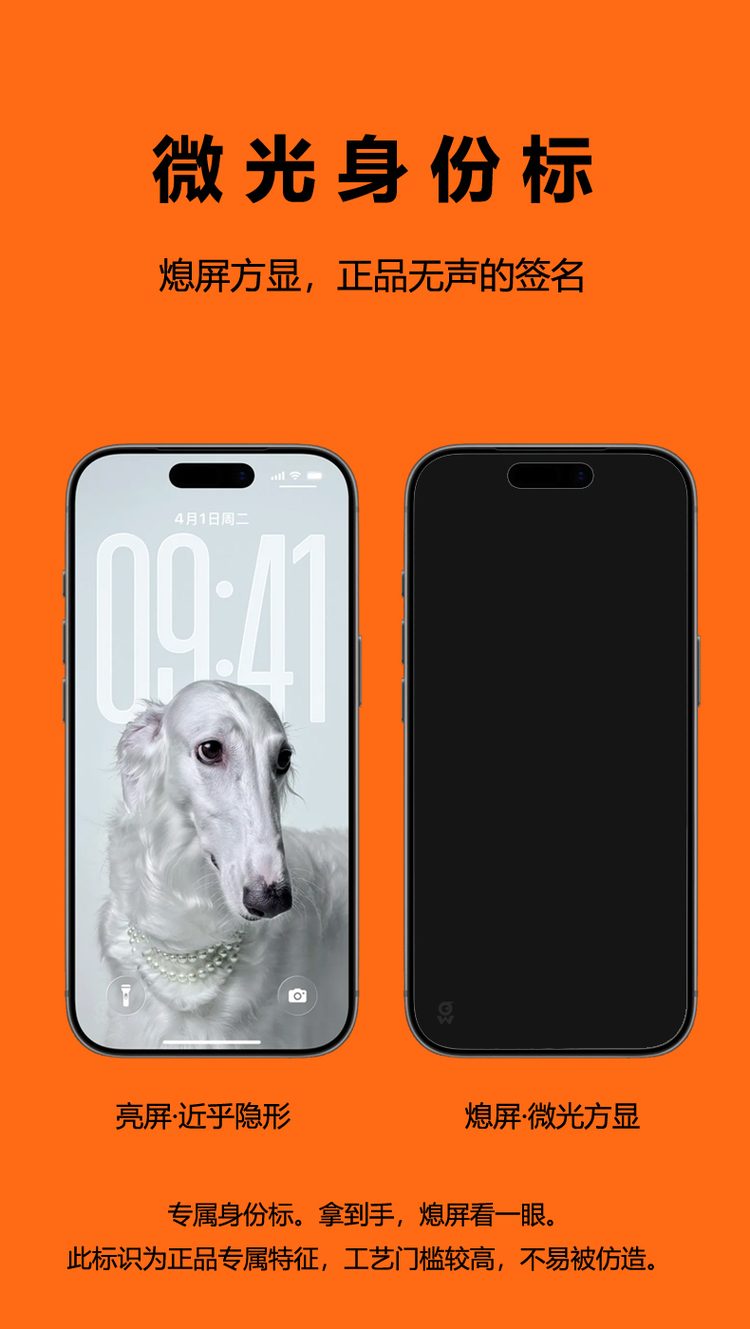

The iPhone 17 Pro Max comes with a circularly polarized light detection card in the box. The comparison of the rotation before and after the patch can be verified with your own eyes. The Micro-light Hidden engraving identity anti-counterfeiting label is nearly invisible when the screen is on and appears in the lower left corner when the screen is off.

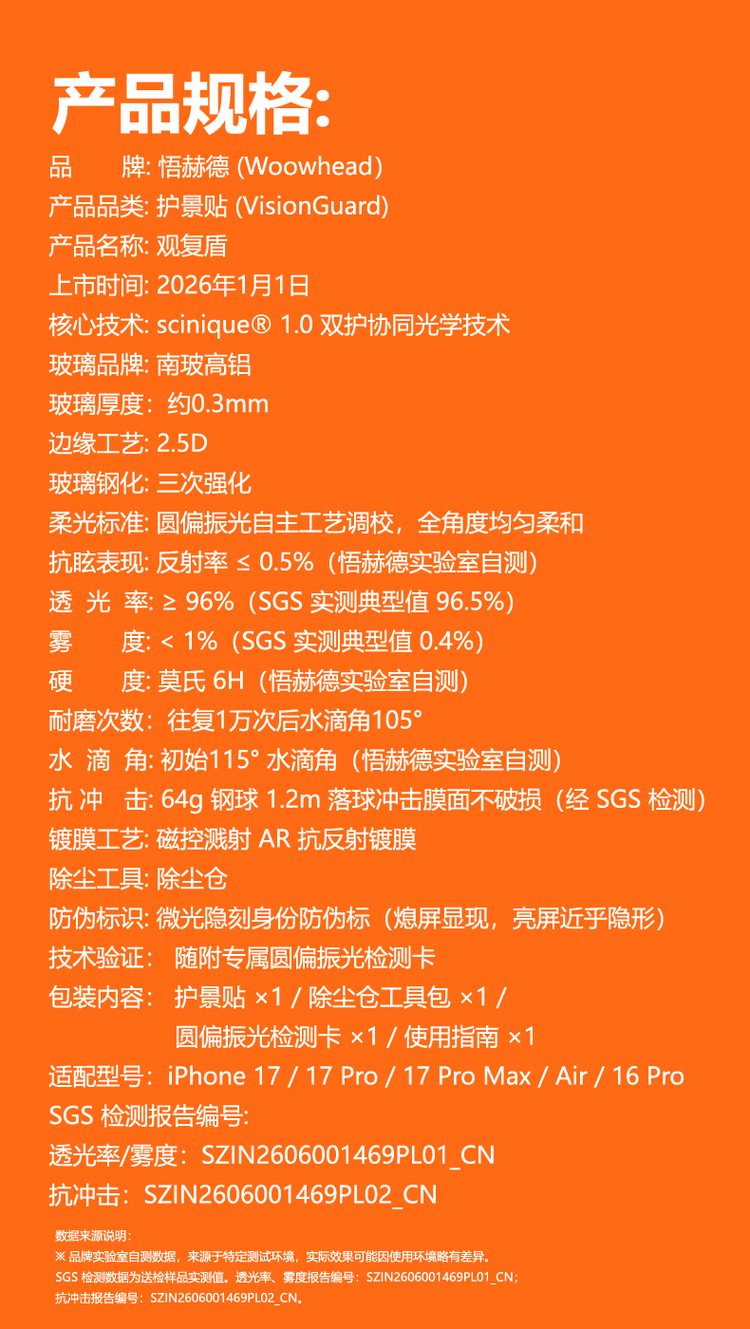

Product parameter information
| Brand | Woowhead Woowhead (Dongguan Runjia Technology Co., LTD. |
| Category | Hujingtie VisionGuard |
| Core technology | scinique® 1.0 Dual-protection Synergistic optical technology provides internal protection for circularly polarized light with self-adjusted soft light standards and external protection for magnetron sputtering AR with anti-glare coating. Woowhead comes with a professional optical inspection card to visualize the state of light (Basic circularly polarized conversion version). |
| Soft light standard | Circularly polarized light · Independent process calibration of soft light standards |
| Anti-glare performance | Reflectance ≤ 0.5% (self-tested in the brand laboratory standard test environment) |
| Light transmittance | ≥ 96% (SGS measured 96.5%) |
| Haze | < 1% (measured by SGS at 0.4%) |
| Mohs hardness | 6H (Self-test by Brand Laboratory |
| Initial water droplet Angle | 115° (approximately 105° after 10,000 wear-resistant reciprocating cycles) |
| Impact-resistant | A 64g steel ball dropped from a height of 1.2 meters does not break |
| Glass substrate | Nanshan high alumina silicon glass, approximately 0.3mm |
| Edge processing | 2.5D (reserved shell position) · Three enhancements |
| Listing time | 2026-01-01 |
| Applicable models | iPhone 17 Pro Max |

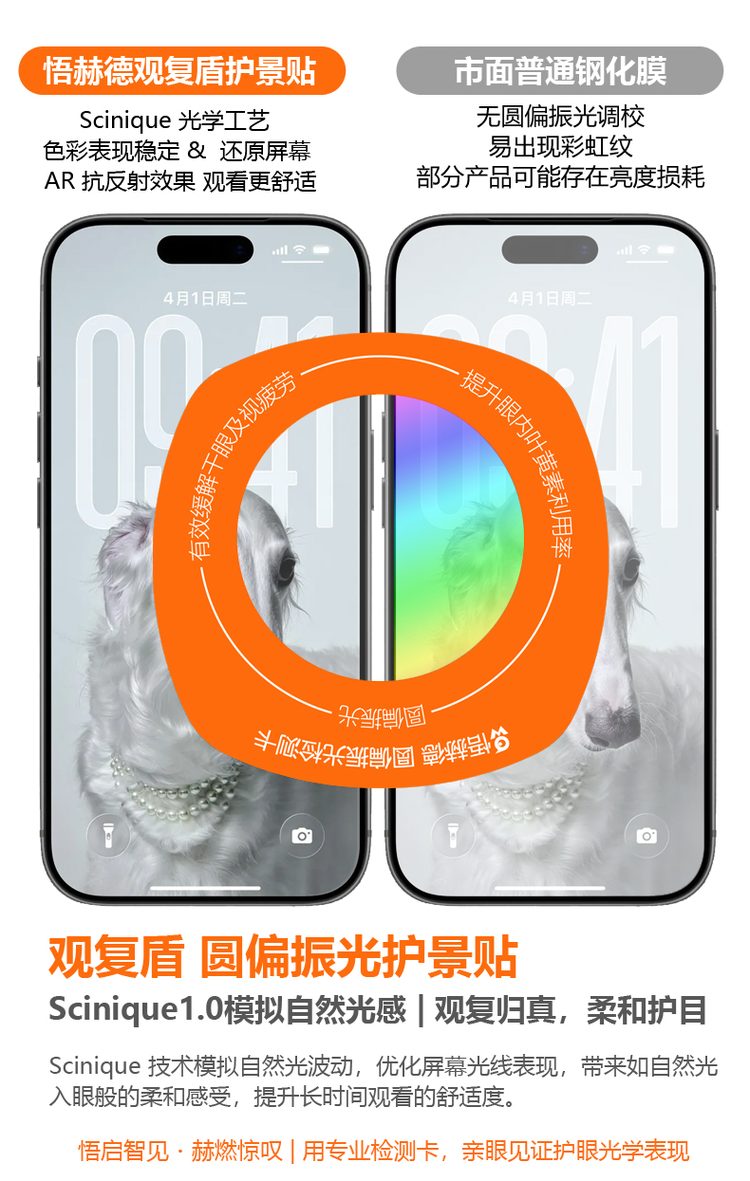

Compared with ordinary tempered films
| Comparison item | Woowhead Guanfudun | Ordinary tempered film (general level |
|---|---|---|
| Light transmittance | 96.5% (SGS report SZIN2606001469PL01_CN) | It is generally between 90% and 92% |
| Surface reflectance | ≤0.5% (Self-test in the standard testing environment of the brand laboratory) | Ordinary screen glass is approximately 4% |
| Reflection and glare | Circularly polarized light + magnetron sputtering AR· anti-glare coating dual protection | No optical processing |
| Price | ¥129 per piece (¥159 for two pieces) | Approximately ¥10-30 |
Note: The above is an objective description of the differences in product positioning. The parameters of "ordinary tempered film" are at the general industry level. Please refer to the actual products of each brand for specific details.
Other models in the same series
Product detail image
Q&A
Which models is this eye-protecting tempered film suitable for?
This page is customized for exclusive models, with the openings and arcs precisely adapted to the models. Guanfudun covers iPhone 16 Pro / 17/17 Pro / 17 Pro Max/Air / 18 Pro / 18 Pro Max and mainstream Android straight-screen models. Guanfudun Qu is suitable for users with a bare phone feel. Please check the model before purchasing to avoid incorrect pasting. For the iPhone 17 Pro Max, both the openings and the curvature were calibrated according to the actual measurement of this model.
Can it be used with a phone case? Will it touch the edge?
Sure. The edges of Guanfudun (2.5D) reserve space for phone case assembly, ensuring no edge lifting or curling when used with the case. Guanfudun Qu (3D hot bending) fits the curved surface, providing a better feel without the machine. When installing the thick case on the iPhone 17 Pro Max, it is recommended to try installing the case first and then apply the film, and check that there is no top pressure on the edge.
Is this film an eye-protecting tempered film? What is the principle?
Yes. The product is equipped with the self-developed scinique® 1.0 dual-protection synergistic optical technology. Internally, it protects: circulally polarized light, with self-adjusted soft light standards; externally, it protects: magnetron sputtering AR, with anti-glare coating. Woowhead is also equipped with a professional optical inspection card to visualize the state of the light. Reflectivity ≤ 0.5%, no staining, no yellowing, balancing eye protection and high-definition picture quality. The iPhone 17 Pro Max is also equipped with scinique® Dual Protection Synergistic Optical technology (1.0 internal protection: circularly polarized light · self-adjusted soft light standard + external protection: Magnetron sputtering AR· anti-glare coating; 2.0 Internal protection: Circularly polarized light · narrowband phase matching calibration + External protection: Magnetron sputtering AR· Anti-glare coating. Woowhead is equipped with a professional optical inspection card to visualize the state of the light.
Are there any authoritative test data?
Yes. SGS measured the light transmittance to be 96.5% and the haze to be 0.4% (Report SZIN2606001469PL01_CN). The 64g steel ball did not break when dropped from a height of 1.2m (Report SZIN2606001469PL02_CN), and the Mohs hardness was 6H. The above-mentioned third-party report number is also applicable to iPhone 17 Pro Max.
What should I do if the film application fails? Is return or exchange supported?
The official supports 7-day no-reason return and exchange for brand-new unopened products and free replacement if the film application fails. The "Usage Help" page offers video tutorials on film application and problem-solving guidelines. You can also book one-on-one remote video guidance. The screen protector issue of iPhone 17 Pro Max can be referred to the handling process on the "User Help" page.
Video tutorial on applying film
Apply the film for iPhone 17 Pro Max and follow the video step by step to complete it more intuitively. For the complete "Six-step Film Application Method", instructions for using the circularly polarized light detection card, and solutions to common film application issues, please refer toService and Support · Usage Help。
